CAD Drafting for
Land Surveyors.
DK Drafting turns your field data into precise, plot-ready deliverables — boundary, topo, ALTA/NSPS, plats, and exhibits drafted to your standards, so your crews stay in the field and your sheets go out the door.
Survey drafting, done right
Specialized CAD support for land surveyors, engineers, and design firms — from raw field data to a finished, plot-ready drawing.
Boundary Surveys
From simple residential lots to complex acreage, retracement, and multi-deed tracts — drafted to your jurisdiction's standards.
Learn more →Topographic Surveys
Contours, spot elevations, and surface modeling from point clouds, field books, or raw point data.
Learn more →ALTA / NSPS Land Title
Full Table A items, Schedule B-II references, and certifications — drafted to the current ALTA/NSPS standard.
Learn more →Plats & Subdivisions
Minor recorded maps through major subdivisions — lots, blocks, road right-of-way, easements, and recording-ready sheets.
Learn more →Site, Pool & Easement
Permit-ready site and pool plans with setbacks and dimensions, plus easement exhibits with metes-and-bounds write-ups.
Site Plans → Pool Plans → Easements →CAD Cleanup & Redraw
Layer standardization, line-weight fixes, block conversion, and hand-drafted plat scans digitized to clean, layered CAD.
Learn more →Built for land surveyors
Not a generic CAD shop — a drafting partner that speaks bearings, monuments, and record plats, and plugs straight into a survey firm's workflow.
Overflow capacity, on demand
Take on more work without hiring another drafter. Send projects when you're buried — pay only for what you use.
Your standards, your layers
We draft in your layer scheme, blocks, linetypes, and title block — files drop straight into your workflow.
White-label & confidential
Deliverables carry your firm's name and your title block. Your clients never know we exist.
Review-ready, every time
Clean, consistent sheets that hold up under the licensed surveyor's review — with unlimited revisions until it's right.
A selection of recent projects
Real survey, site, pool, and plat-redraw work — drafted in CAD and delivered as plot-ready PDF + DWG. Click any project to open its page in the browser PDF viewer.

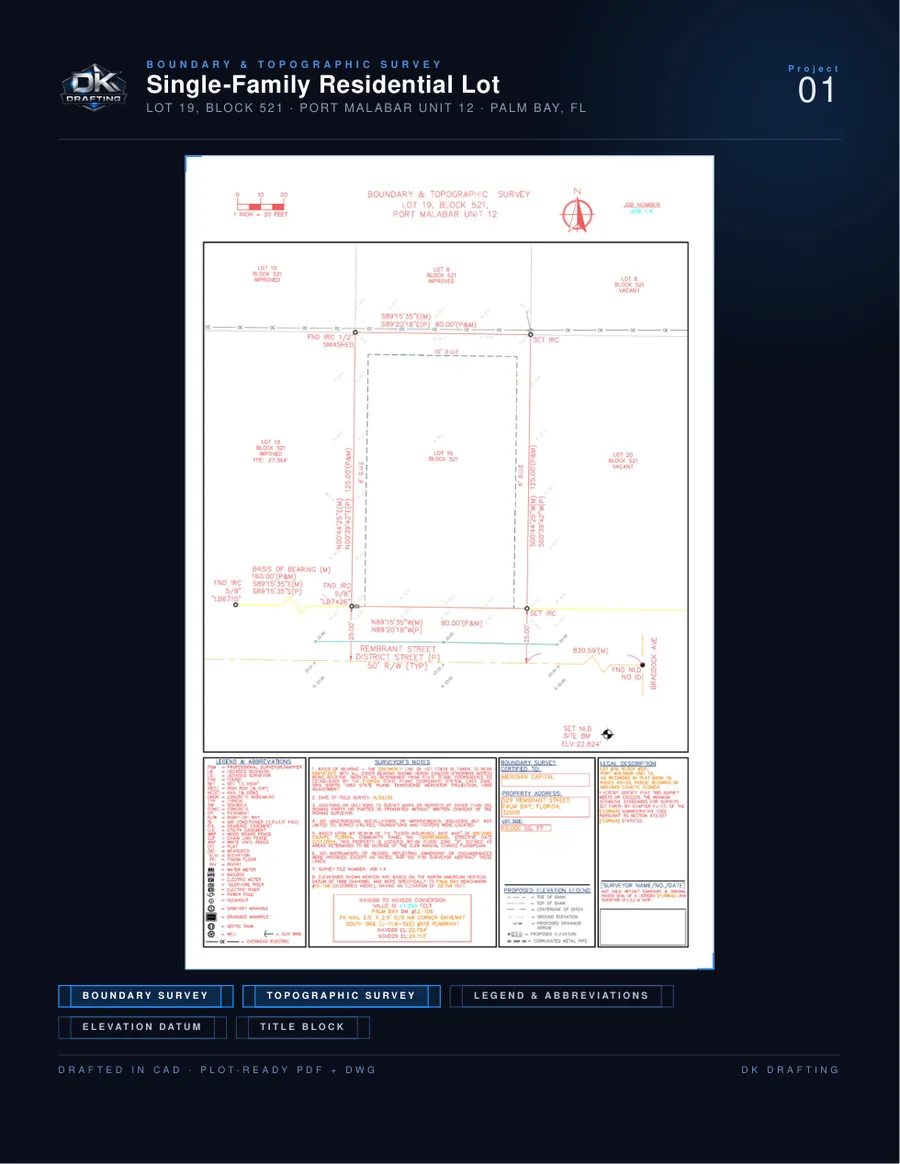

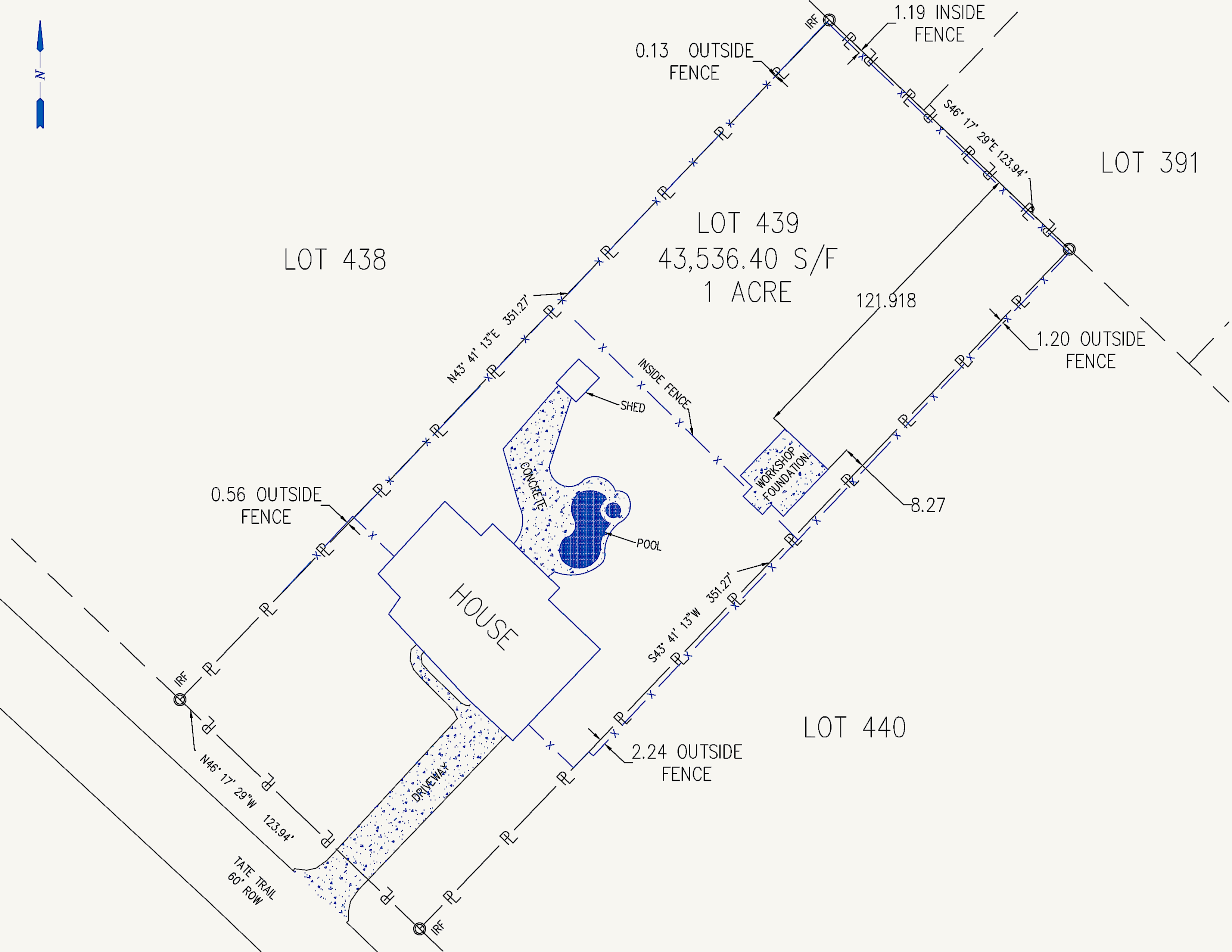

Single-Family Residential Lot

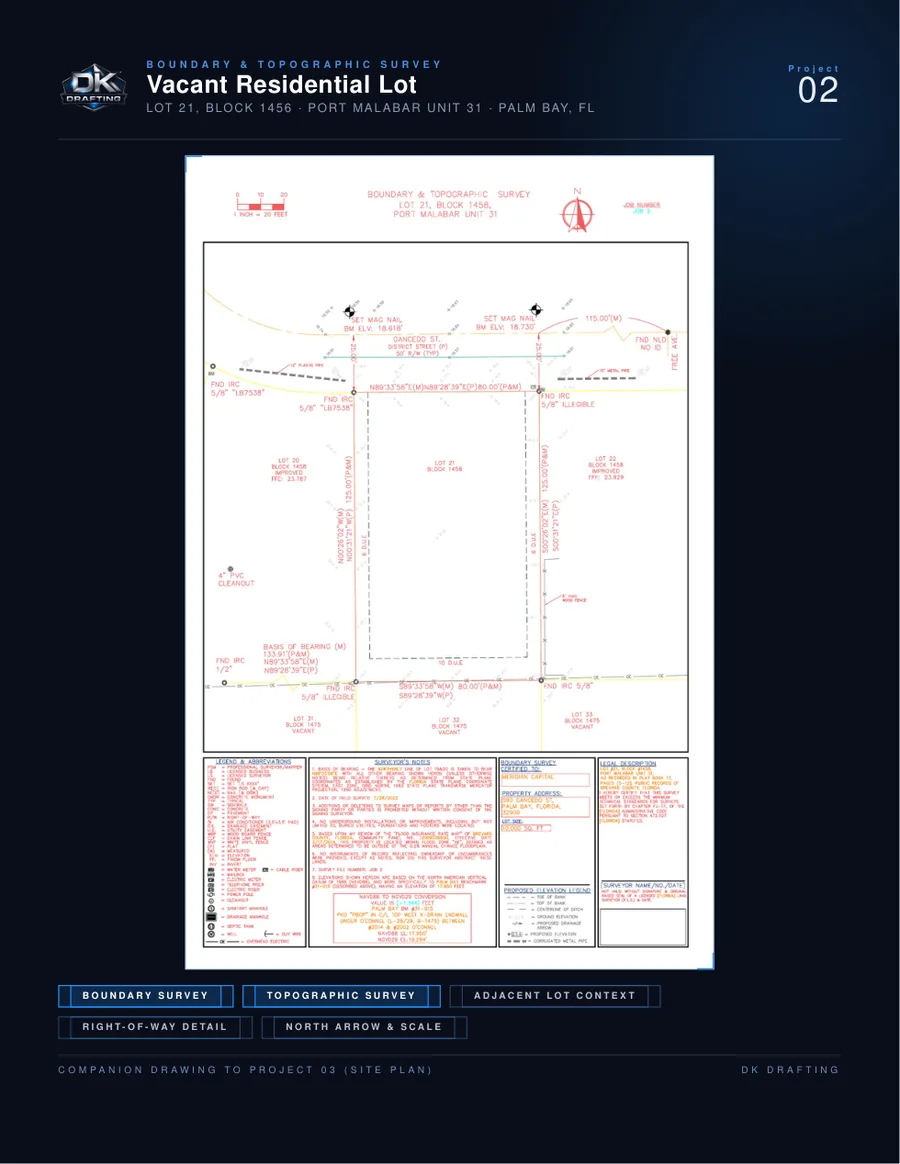

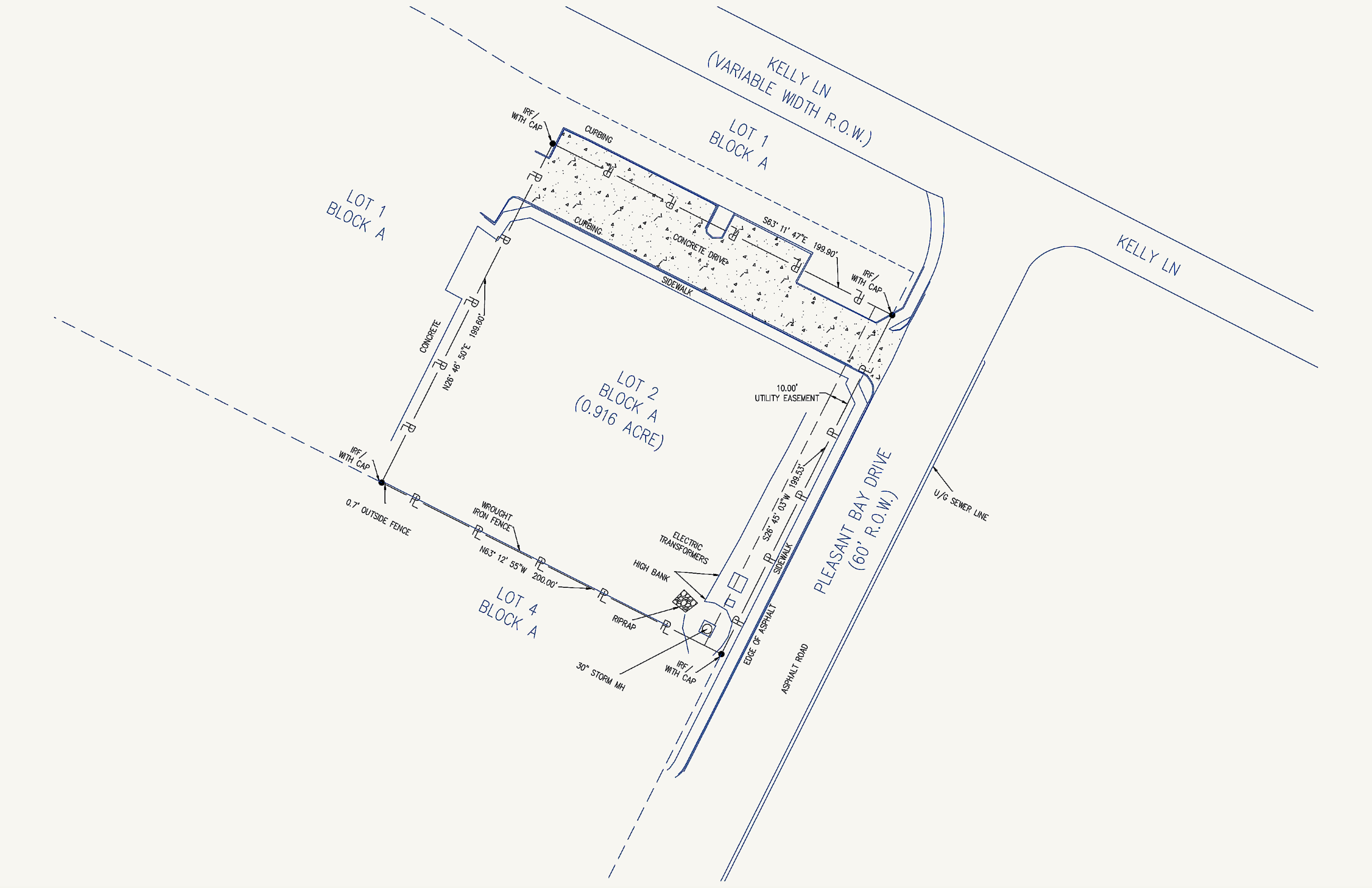

Vacant Residential Lot

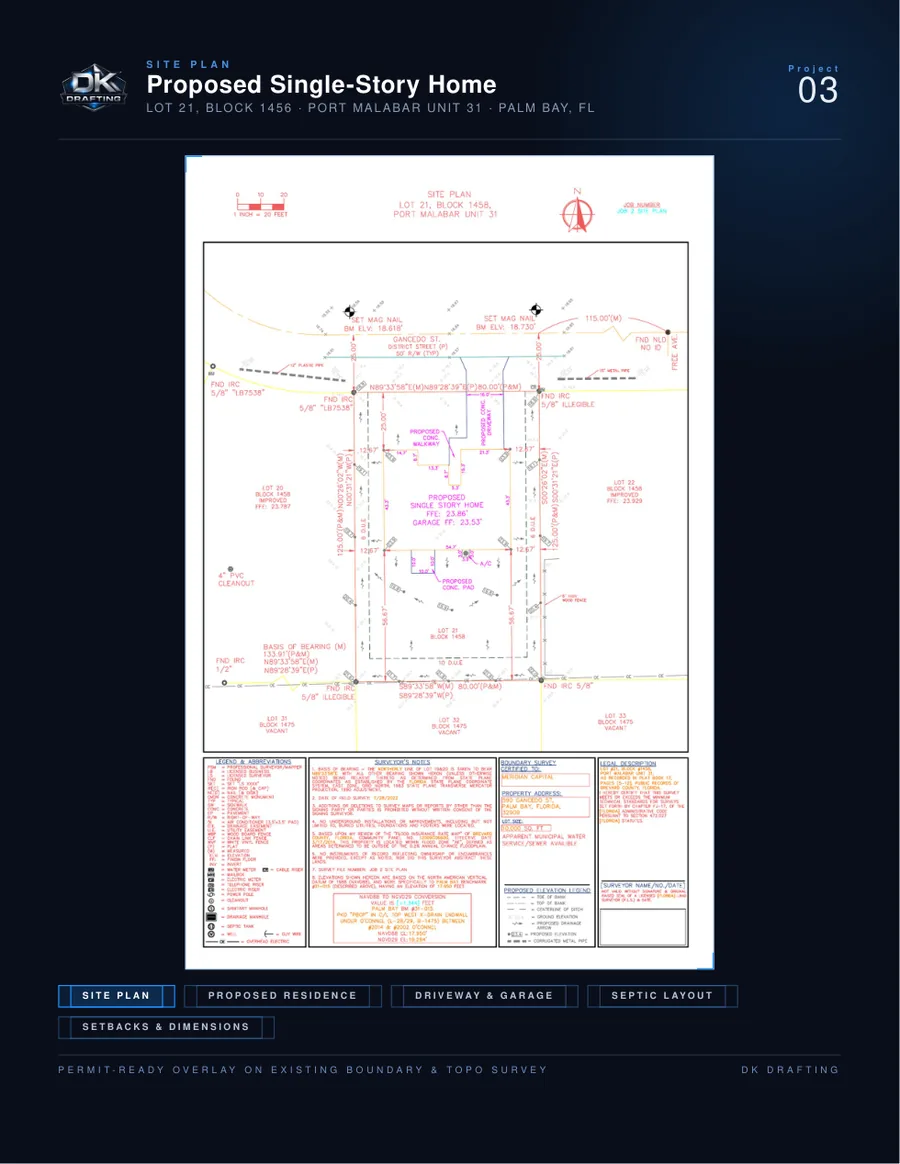

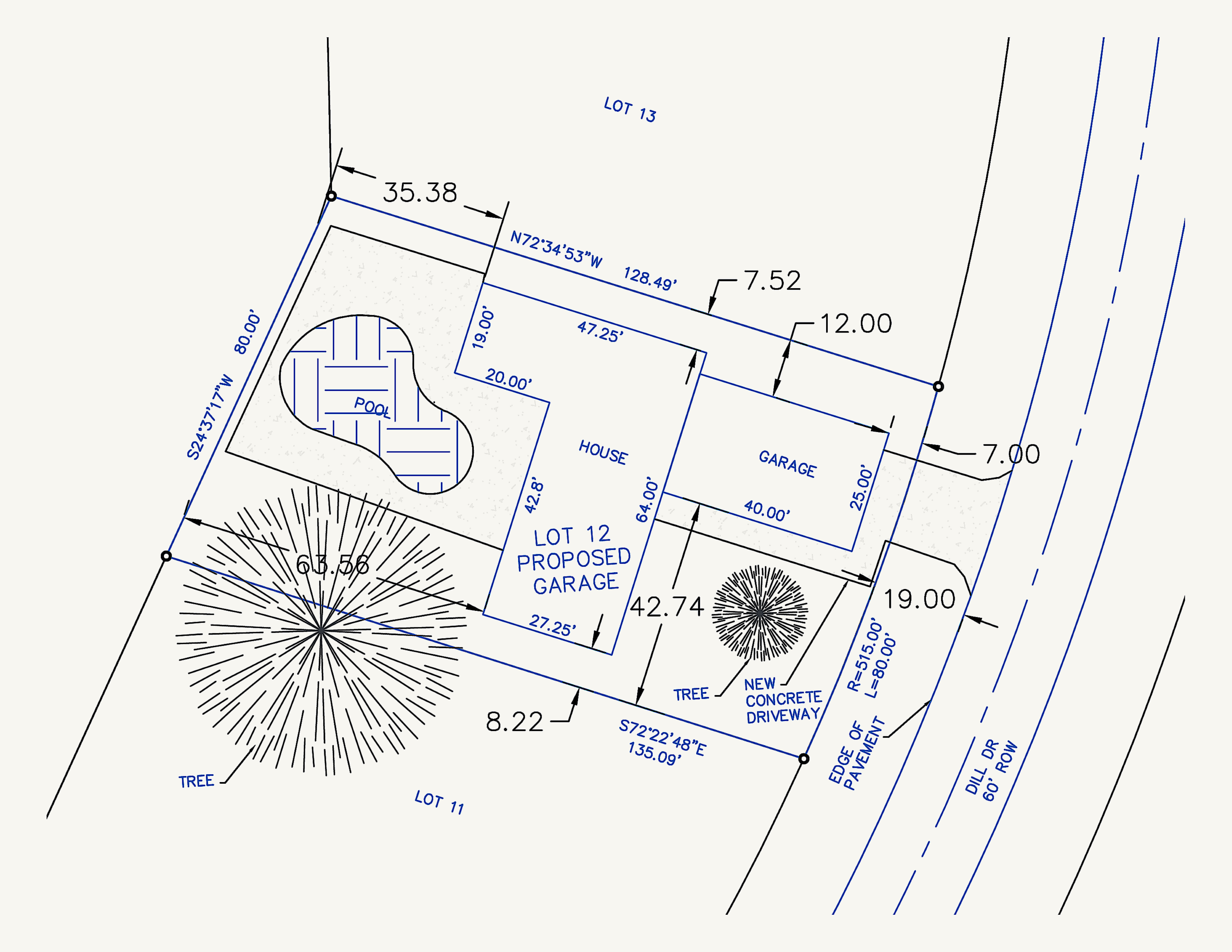

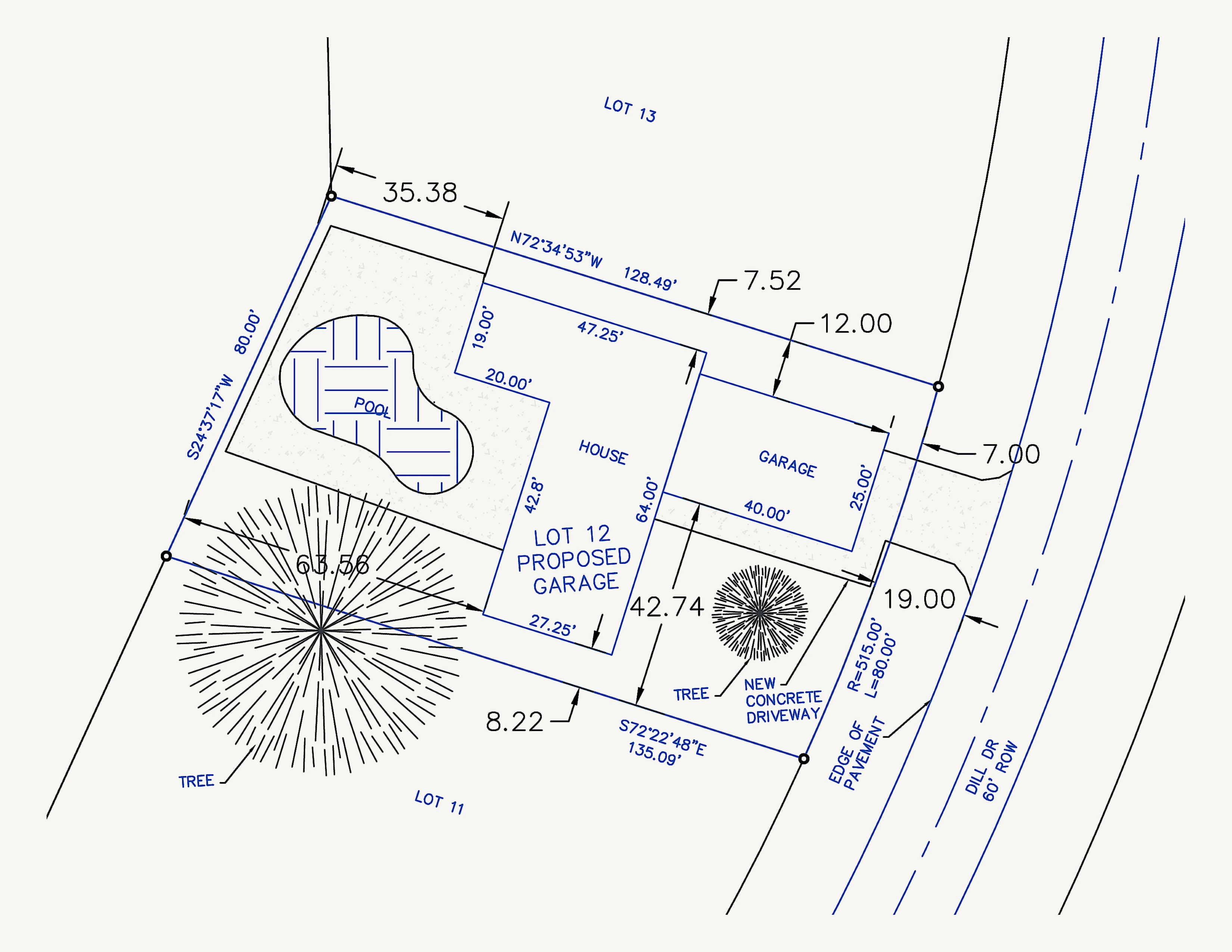

Proposed Single-Story Home

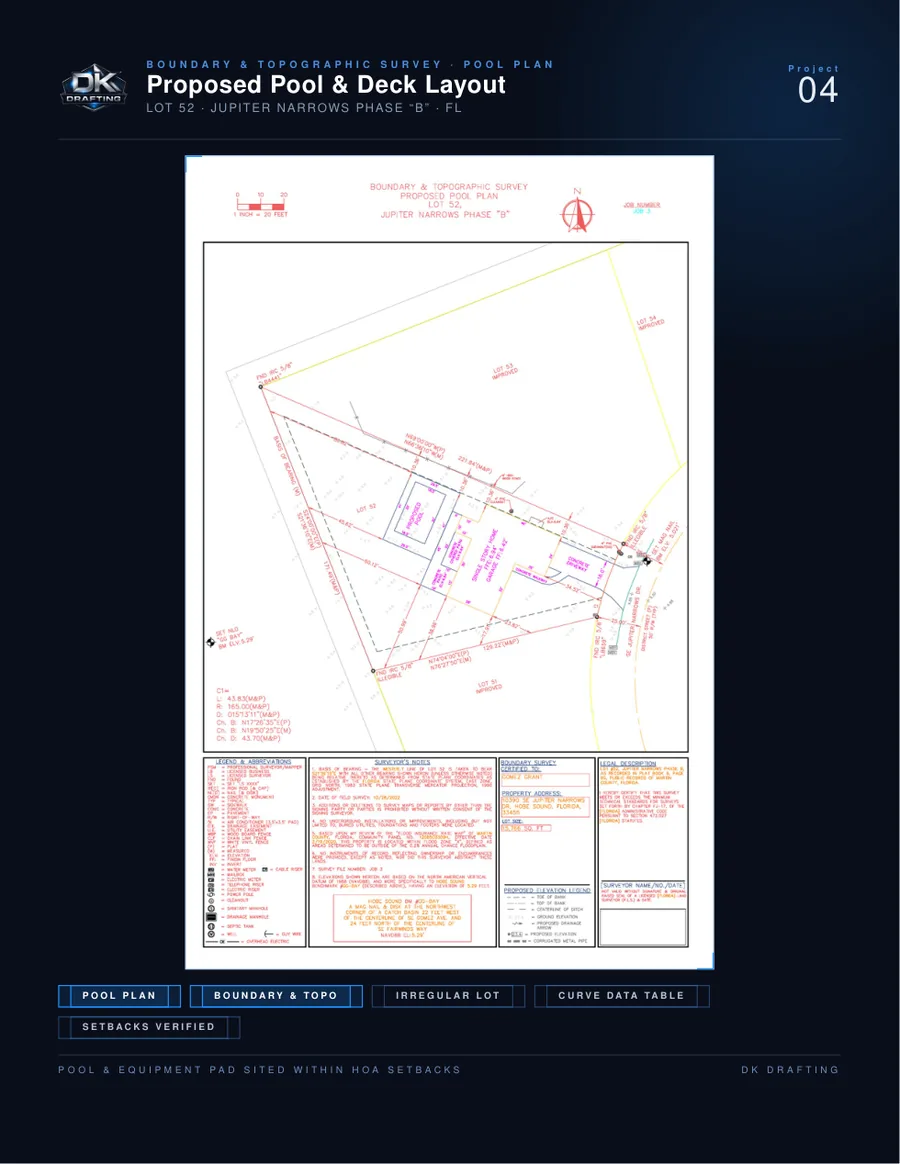

Proposed Pool & Deck Layout

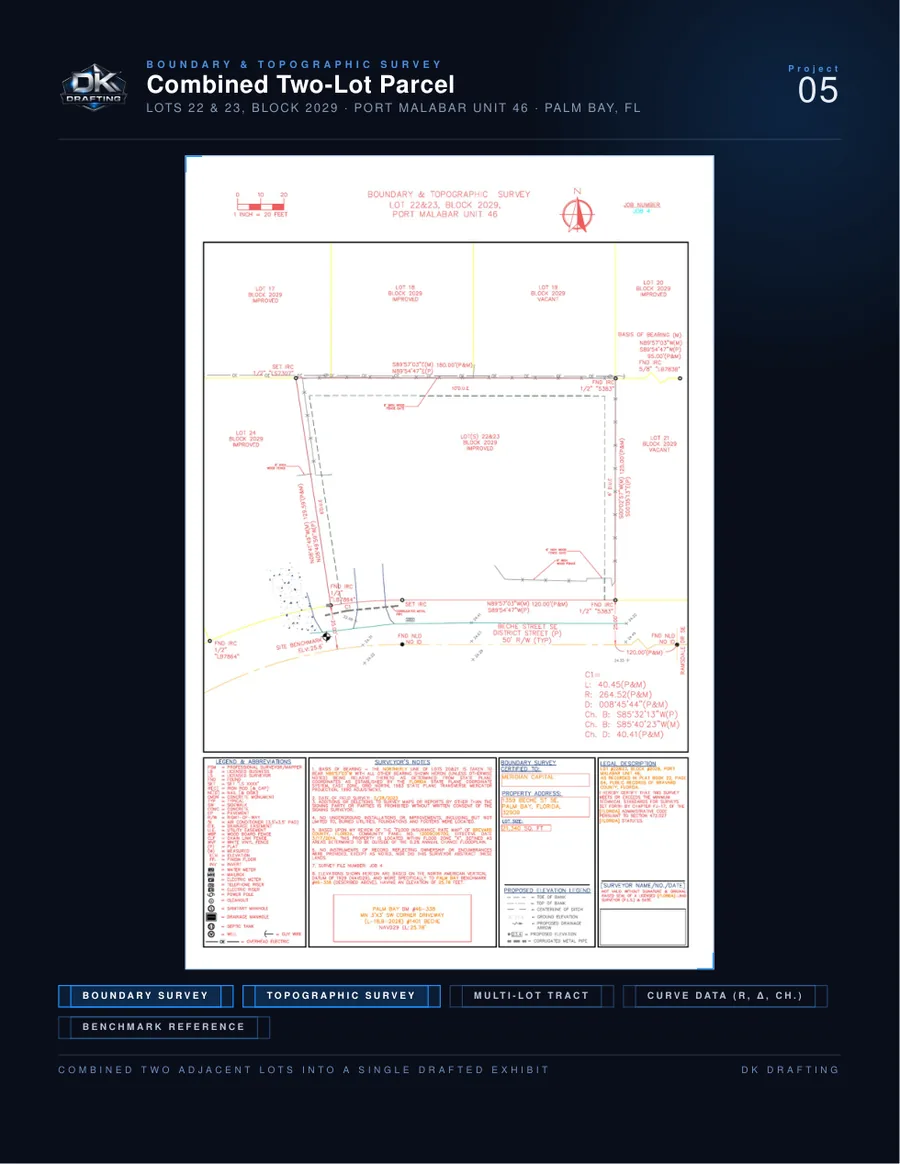

Combined Two-Lot Parcel

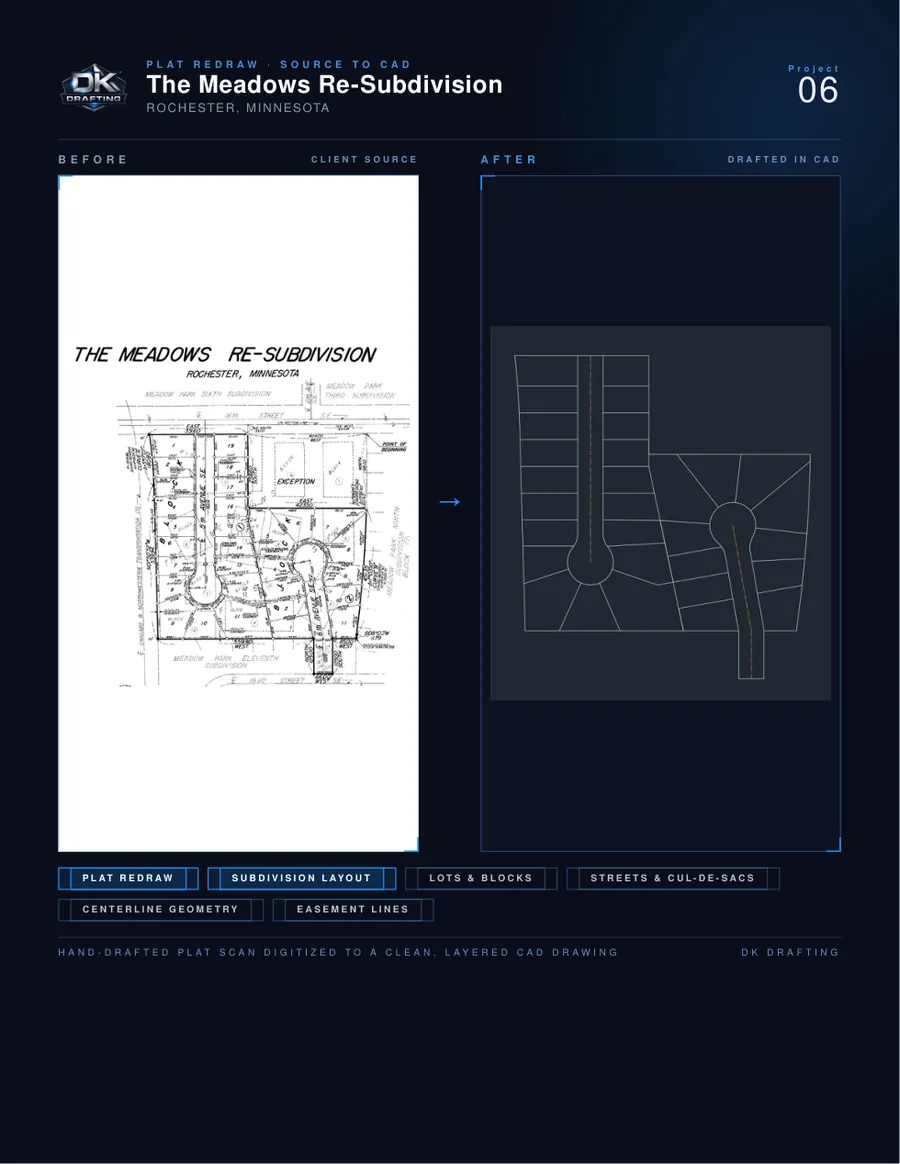

The Meadows Re-Subdivision
A straightforward, four-station process
Built around precision, clarity, and collaboration — so you always know where your project stands.
Submit Your Files
Send field data, point files, sketches, or markups. Any format — we'll sort it out.
Scope & Quote
You get a clear quote and timeline up front. No surprises, no hidden revisions.
Drafting & Review
We draft to your standards and refine with unlimited revisions until it's exactly right.
Final Delivery
Receive plot-ready DWG and PDF files with a standard title block, on time.
Detail is the difference between a drawing and a deliverable.
DK Drafting was founded by Dakota Musiedlak on a simple belief: surveyors deserve drafting support that's as precise and dependable as the fieldwork behind it.
Operating nationwide and fully remote, the firm transforms complex survey data into actionable, high-quality designs — combining technical accuracy with clean, readable presentation that holds up to professional scrutiny.
Transparent, project-based rates
Rates below are starting points — final quotes depend on size, complexity, and source-document quality. Every project is quoted up front.
Schedule A — Surveys
Schedule B — Site & Exhibits
Ready when you are
Have a drawing that needs to be done right?
Send your files and get a clear quote within a day. Nationwide service, plot-ready results, unlimited revisions.
Let's get your project drafted.
Reach out directly or send the form — you'll hear back fast, usually within one business day.
